What is a Solar Charge Controller, and How Does It Protect Your Battery Bank?

If you are building or upgrading an off-grid solar setup in South Africa, a reliable solar charge controller is one of the most critical components in your system. Sitting directly between your solar panels and your battery bank, this essential device regulates the voltage and current flowing into your batteries, preventing severe overcharging, deep discharge, and premature battery failure.

Whether you are managing power during load shedding in Gauteng, outfitting a mobile caravan setup, or managing a complete off-grid home, choosing the right solar regulator ensures maximum energy efficiency and long-term battery health.

What Does a Solar Charge Controller Do?

Without a controller, solar panels can feed unpredictable high voltages straight into a 12V, 24V, or 48V battery system. On intense sunny days—especially common across high-altitude regions like Johannesburg and Pretoria—this direct connection can boil off electrolyte liquids in sealed lead-acid/gel batteries or trigger safety shutdowns in lithium (LiFePO4) battery management systems (BMS).

Key functions include:

• Overcharge Protection: Automatically drops the current when the battery bank reaches full capacity.

• Reverse Current Block: Prevents stored energy in your batteries from discharging back into the solar panels at night.

• Controlled Load Output: Manages direct DC appliances (such as outdoor solar lights or 12V fans) while protecting against low-voltage drain.

• Thermal Regulation: Adjusts charge rates based on ambient ambient temperatures to optimize energy transfer.

PWM vs. MPPT: Which Solar Charge Controller Do You Need?

When searching for a solar charge controller in South Africa, you will encounter two main technologies: Pulse Width Modulation (PWM) and Maximum Power Point Tracking (MPPT).

1. PWM (Pulse Width Modulation)

PWM Solar Charge Controllers act like an electronic switch between the panels and the battery. They force the solar panel output voltage down to match the battery voltage. While highly economical, they work best when panel voltage closely matches battery voltage (for example, a 36-cell solar panel charging a standard 12V deep-cycle battery).

2. MPPT (Maximum Power Point Tracking)

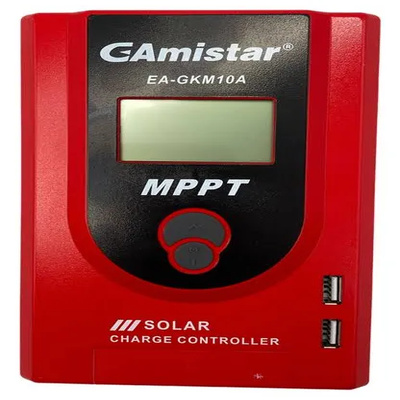

MPPT Solar Charge Controllers continuously calculate the optimal voltage and current point (the “maximum power point”) of your solar panels and convert high panel voltage down to the exact charging voltage needed. This enables up to 30% higher energy yield, making them the ideal choice for maximizing solar intake during shorter winter sunlight hours in Gauteng.

Key Benefits of Upgrading Your Solar Regulator in Gauteng

1. Extended Battery Lifespan: Proper multi-stage charging (Bulk, Absorption, Float) prevents sulfation in AGM/Gel batteries and preserves cycle life in Lithium-ion units.

2. Load Shedding Resilience: Keeps backup battery banks topped up consistently so you are never left in the dark during planned power cuts.

3. Versatile System Expansion: High-amperage units (such as 40A or 60A models) give you room to add more panels to your array over time.

Finding a Reliable Solar Charge Controller For Sale Near You

When buying a solar charge controller for sale near me in Sandton, Johannesburg, or anywhere across South Africa, ensure you check the following technical parameters before placing your order:

1. System Voltage: Match the controller to your battery setup (12V, 24V, or 48V auto-sensing).

2. Current Rating (Amperage): Calculate total solar wattage divided by battery voltage, adding a 25% safety margin. For example, a 500W panel array on a 12V system requires at least a 40A charge controller.

3. Display & Monitoring: Digital LCD screens display real-time charging currents, battery state-of-charge, and error codes at a glance.

Buy Solar Charge Controllers Online at Estellar

At Estellar, we supply reliable, high-performance solar charge controllers across Gauteng and throughout South Africa. Whether you are looking for an affordable controller for a small emergency power setup or a robust 40A unit for larger solar arrays, our store delivers directly to your door.

• Fast Shipping Across South Africa: Doorstep delivery to Johannesburg, Pretoria, Cape Town, Durban, and regional hubs.

• Complete Solar Eco-System: Pair your controller with our range of solar panels, deep-cycle solar batteries, high-efficiency solar floodlights, and power inverters.

Browse our full inventory online at Estellar Solar Charge Controllers to find the right unit for your power setup today.
